Celestial Navigation 101: Lesson 5, Objects in Motion (Introduction)

So far, we have looked at celestial objects as if they were more or less motionless in the sky. But with the exception of Polaris, nothing could be farther from the truth. The earth rotates on its own axis, causing the entire sky to appear to spin around it once every day. The earth revolves around the sun in an elliptical orbit once each year, and the other planets also revolve around the sun. The moon revolves around the earth, moving easterly relative to the stars. The stars themselves move relative to the earth and to one another. From our perspective this motion of the stars is minor, but not so minor that we can ignore it for our navigation.

I'll be on the water the next few days; when I'm back in front of a real computer we'll tackle the problem of how to determine the geographic position of a body in motion on a different body in motion.

Justice for All (who can afford it)

If you're still wondering what the 99% are yelling about, this would be it.

Wednesday, October 19, 2011

Ex-Meridians for USCG exams

This post is about celestial navigation, however it is most emphatically NOT part of the "Celestial Navigation 101" series. This topic is beyond the scope of even what we normally teach as "advanced celestial navigation". However, esoteric though it is, it shows up on USCG licensing exams for 1600 ton Mate Oceans and above. So this post is mostly intended for Oceans license candidates in the US Merchant Marine; however, it may have some interest for those working with celestial navigation generally. It happens that at work today I stumbled across a very simple way to solve ex-meridian problems, and so I thought I'd pass that along here.

We have not yet discussed Local Apparent Noon sights in the CelNav 101 series, so let me start with a very brief description of this. Local Apparent Noon, or LAN, is the moment when the sun crosses your longitude line. At that moment it is the highest it is going to be all day. Measure the altitude of the sun with a sextant at that moment, and then, comparing that altitude to the known Declination (latitude) of the sun, you can determine your own latitude. I'm going to explain this in more detail in the CelNav 101 series, but that's the gist of it.

The advantage of LAN is that it is a very easy sight to take with a sextant, and it is very easy to compute. That, however, is its only benefit. The fact that the Line of Position derived from it happens to be a latitude line is irrelevant, because it is as inherently flawed as any other LoP derived from a sextant sight. The real reason we teach LAN at all is that it is a good confidence-builder for fledgling navigators. Once the student masters basic sight-reduction, they never again have a need for LAN, because any celestial object at any time can give them just as much information as the sun can only one time each day.

The technique used to derive latitude from LAN can also, theoretically, be applied to any other celestial body when it crosses your meridian. There's no reason to do so, but it's possible.

These days we confidently rely on twilight sights of stars and planets to confirm our GPS only once each day. However, once upon a time, before the invention of GPS, the "noon sight" was a routine part of the navigator's daily work. If the navigator failed to obtain their noon sight, either due to cloud cover or simply not getting up on deck in time, this was a significant loss of navigational data. So methods were developed to allow the navigator to take a sight a few minutes after the sun had crossed the meridian, and still be able to derive a reasonable latitude from it. This is what is meant by an ex-meridian sight. Centuries ago, when computing a sight reduction required that spherical trigonometric calculations be solved long-hand, ANY celestial line of position which did not require that was an obvious benefit. Since the invention of logarithmic tables (and later calculators and computers) to perform the trig for us, this has not been the case. If a navigator happens to miss their noon sight, they simply take a sight of the sun at whatever time is convenient and reduce that into a line of position which is every bit as useful as an LAN derived latitude. Put another way, no modern navigator worthy of the name would ever use an ex-meridian sight, because a simple sunline is easier and far more accurate.

Except, of course, for USCG license candidates, who are expected to.

There is another CelNav technique on USCG exams which is basically useless and can be done more easily and accurately with another technique which is also required on the same exam. It's called an Amplitude, and is basically a means of computing the azimuth to an object without getting into the spherical trig necessary to compute an azimuth. But with sight-reduction tables or calculators, azimuths are simple, and we have to be able to use them anyway. So the easy way to avoid dealing with amplitudes on a USCG exam is to simply work amplitude questions as azimuth problems.

It turns out that you can do exactly the same thing with ex-meridian sights. Simply compute it as a normal sight-reduction. Because the sights are necessarily either nearly north or nearly south, the intercept can be applied directly to the Assumed Latitude or DR Latitude to derive the latitude of the ex-meridian. That's all.

Here's an actual example from the USCG database. In it they're asking to compute your latitude from the meridian transit of the star Dubhe, in the Big Dipper.

-- On 8 May 1981, in DR position LAT 30°26.0'N, LONG 46°55.1'W, you take an ex-meridian observation of Dubhe. The chronometer time of the sight is 11h 10m 54s, and the chronometer error is 01m 18s slow. The sextant altitude (hs) is 58°35.0'. The index error is 1.5' on the arc, and your height of eye is 44 feet. What is the latitude at meridian transit?

a) 30°12.5'N
b) 30°19.8'N
c) 30°27.6'N
d) 30°35.8'N

30°19.8'N (answer b) is correct. However, if I simply do this as a standard sight reduction (cheating and using a StarPilot calculator, but the result is the same regardless), I get 6.2' Away from 358° T, from my DR latitude of 30° 26.0'N. Since my ex-meridian sight is always going to be essentially north or south of me, I simply subtracted my intercept from my AP (actually DR in this case) and get 30° 19.8'.

In this case it works out to be exactly right, but even worst case it can't possibly be enough off to lead me to pick any of the other answers.

So if you are taking a USCG Oceans Master or Mate exam, you can effectively NOT study the Amplitude or Ex-Meridian methods and still do fine on those questions, so long as you know how to compute a simple sight-reduction. Incidentally, you can also use your sight-reduction method to determine great-circle courses and distances.

At some point soon we'll do a comparison of the two or three leading methods of computing a standard sight-reduction.

Saturday, October 15, 2011

Strait of Magellan safely circumnavigates the sun

I'm working on the water tomorrow (Sunday) and so won't be able to post. But it's 2320 on the 15th now, so I'm actually jumping the gun by 40 minutes or so, in order to get to bed.

That said, Strait of Magellan is one year old today. Believe it or not.

Friday, October 14, 2011

Fortuna Rota

In an earlier post about outmigration, I suggested that a classic Stanford torus space station design could be landed onto the surface of Enceladus in such a way that it would spin like a top, generating artificial gravity for its inhabitants.

A few of you have requested that I elaborate a bit on this idea, but I really don't have a lot to elaborate with. The research for a Stanford torus in space has been done exhaustively. In order to effectively mimic earth's gravity, a Stanford torus is a 1.8 km diameter ring turning at one revolution per minute. A torus this size could provide sustainable habitat for some 10,000 people.

Enceladus has a surface gravity of 0.011% of earth's, meaning something as small as a human would be essentially weightless, but gyroscope nearly 2 kilometers in diameter would presumably have enough mass to keep it "on the ground". The surface of Enceladus is fairly featureless ice, so creating a more or less frictionless stylus for the torus to pivot on should be manageable.

Enceladus has relatively vast resources of fairly accessible seawater and heat energy, although we don't yet know what the source of that energy is. So, that's my idea about putting a torus colony on Enceladus.



Celestial Navigation 101: Lesson 4, Sextant Sights

Continuing with the basic introduction to celestial navigation, we now look at how we're going to actually use the sextant to determine the angle of the celestial object above the horizon. I've made a number of illustrations in MS Paint to illustrate what you will see through the sextant telescope. This was fairly simple. I have not, however, created corresponding illustrations of the sextant itself, either as a whole, or illustrating reading the limb or micrometer drum. I did attempt to render such illustrations in Paint, but doing so proved beyond my skill level. Hopefully their absence will not prove a stumbling block.

For this lesson I will assume that we are using a sextant with a traditional split-horizon mirror, but the principles are the same with a whole-horizon mirror also.

When you begin a round of sextant sights, you must first determine the amount of intrinsic error the alignment of the index mirror will instill into your sights. For a good metal sextant you might perform this step once every several days; for a plastic sextant you'll want to do this before and after every set of sights.

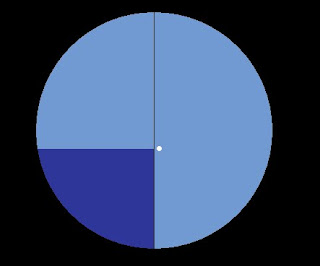

Set your sextant index arm to 0° 00.0'. Then look at the horizon. You will see something like this:

Now, adjust the index arm until the two images come together like this:

Now look at your index arm, and micrometer drum if your sextant has one. Unless your sextant is perfectly aligned, you will now read some number larger than 0° 00.0', either "on" the sextant arc between 0° and 90° or 120° or whatever number your sextant goes to, or else "off" the sextant arc beyond zero in the other direction. Which side this Instrument Error is on, you are going to correct your Height Shot (Hs) of the celestial object in the opposite direction. Think of it being like a jacket; if it's on, take it off, and if it's off, put it on. This opposite value of the Instrument Error is called the Instrument Correction, or IC. Write this number down, you'll be using it in all of your calculations later.

Now, move the index arm out toward the middle of the arc, somewhere around 40° is fine. Now looking at the horizon, on the index side of the mirror we see only sky:

Now, the sun has set and civil twilight has ended. We have precomputed that the star Capella bears about 043° True at an altitude of about 52° above the horizon. We dial 52° into the sextant index arm and aim the sextant toward the northeast horizon. And, by the miracles of astronomy and arithmetic, we find in our sextant telescope this:

Which is pretty darned impressive, considering.

You now, using the micrometer drum, bring Capella down until it just barely touches the horizon:

And to ensure that you are holding your sextant exactly vertical, you rock it back and forth so that the image of Capella also rocks back and forth. You want to measure the angle at the exact moment (very exact, remember four seconds of time is one nautical mile) that Capella barely kisses the horizon in lowest portion of the rockering.

That's all there is to taking a star sight with a sextant. Bring the star down to the horizon, mark the time, write the time down in your notebook, read the angle you shot off of the sextant limb and micrometer drum and then write those down next to the time. That's it.

The sun is mostly the same, with two exceptions. First, we have to use filters so that staring at the sun through a telescope doesn't burn out our retinas. In this case, the filter has made the sun appear purple.

Using the micrometer drum, bring the sun down so that the very bottom of the disk of the sun, called the Lower Limb, just touches the horizon. I haven't drawn it, but rock the sun just like you did with Capella. Because the sun is very bright, you will usually get a "ghost" image of the sun on the side of the horizon mirror that is not a mirror. It's perfectly fine to utilize this image.

If the sun is reflecting brightly on the water, you may need to use a filter on the horizon as well. In this example, the filter for the sun is dark purple and the filter for the horizon is light green. This incidentally is fairly common.

In almost every single case, you will use the Lower Limb of the sun whenever you shoot it. However, when you shoot the moon, depending on its phase and position in the sky you will sometimes need to shoot the Lower Limb and at other times you will need to shoot the Upper Limb, like this:

In most cases, the visible disk of planets are so small in a sextant telescope that you can simply treat them as points of light like a star. If the visible disk of a planet is large enough that you can easily discern an upper and lower limb, align the horizon with the center of the planet. Pictured here is Jupiter, with three of the Galilean moons visible:

That is really, really, all there is to it. Oh, except that I forgot to mention that the celestial body you're shooting happens to be moving.

More on that, soon.
